White LED Strip Installation Layouts
These are the most popular LED strip and driver combinations for white LED strips. Choose from the following options to see step by step installation instructions. Always verify that your LED driver can supply the adequate wattage, and correct voltage to your LED strips.

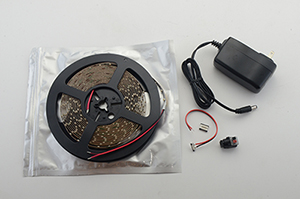

12V White LED Strip Plugs into Adapter
View Step-by-Step Instructions Here

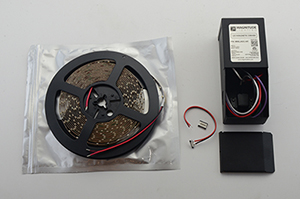

12 or 24V LED Strip with Dimmable Driver
View Step-by-Step Instructions Here

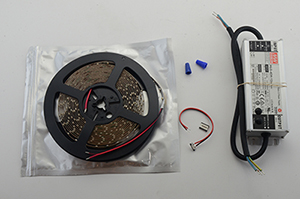

12 or 24V LED Strip with Non-Dimmable Driver
View Step-by-Step Instructions Here

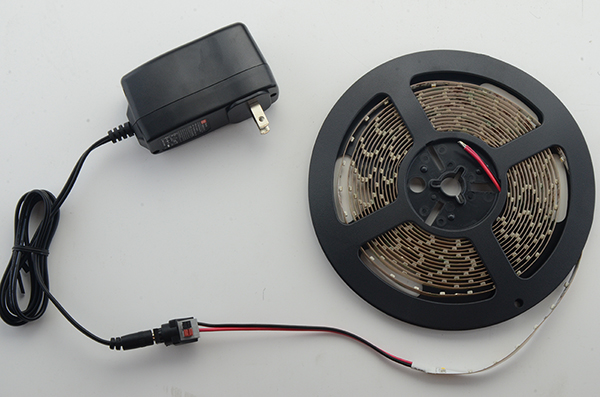

Connect White LED Strips to an Adapter
This is the simplest LED strip installation setup. Easily plug any of our white LED strips to a standard US outlet in minutes using one of our adapters with no need to worry about hard-wiring.
A: 12V Commercial Grade White LED Strip OR 24V Professional LED Strip
B: 12V or 24V Adapter
C: Female DC Adapter Connector
D: Quick Connectors for White LED Strip (10mm or 8mm)
A: 12V Commercial Grade White LED Strip OR 24V Professional LED Strip
B: 12V or 24V Adapter

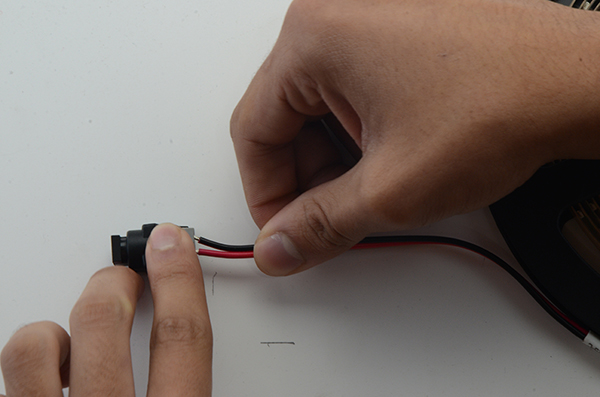

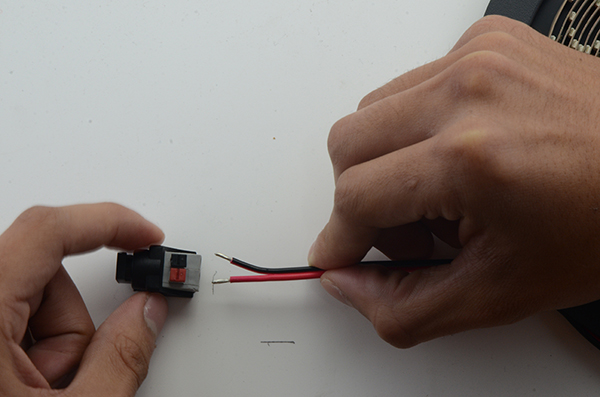

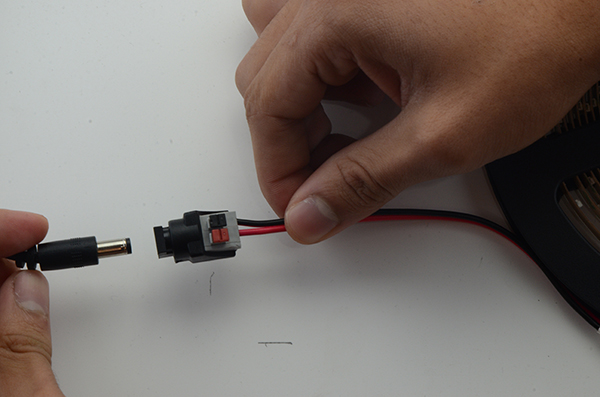

C: Female DC Adapter Connector
D: Quick Connectors for White LED Strip (10mm or 8mm)
