24V High Output Corner Mounted LED Bar up to 24"

SKU:
LEDBARIII24
Availability:
Built to Order, Please allow 5-10 business days
These high-output LED bars provide up to 400 lumens/foot and are an excellent light source for retail and display case lighting applications. Built any size up to 24" and available in in a variety of configurations. This LED Bar is great for closets, high-output under cabinet lighting, jewlery displays, and more.

Read More
  • Light Output: up to 800 lumens (400 lumens/foot)
  • Voltage: 24VDC (Standard)
  • Wattage: up to 12 Watts (6 Watts/foot)
  • Size: Any size up to 24"
  • Warranty: 5-Year Limited Warranty
  • Safety: UL-Listed
Scroll down for more detailed product information

Project Support

This product does not include power supply. Click here for our Power Selection Guide.
Read Less
$69.90

/ Description

Features

  • Select from four housing types best suited to your project needs
  • Configured for simple and head-ache free plug-and-play installation.
  • Designed to easily conceal under cabinets, inside display cases, and more.
  • Tailored Look and Feel Built any size up to 24"
  • UL-Listed
Click here for Installation Instructions:
LED Bar Installation Instructions

Options

Housing Type

  • Choose the fixture type best suited to your applications. Corner mounted fixtures are easily installed with clips.

Color Temperature

Size

  • Built to any size up to 24"

Powering


Any Size up to 24"
12 Watts
800 Lumens

These high-output LED bars provide up to 400 lumens/foot and are an excellent light source for retail and display case lighting applications. Built any size up to 24" and available in in a variety of configurations. This LED Bar is great for closets, high-output under cabinet lighting, jewlery displays, and more.

  • Light Output: up to 800 lumens (400 lumens/foot)
  • Voltage: 24VDC (Standard)
  • Wattage: up to 12 Watts (6 Watts/foot)
  • Size: Any size up to 24"
  • Warranty: 5-Year Limited Warranty
  • Safety: UL-Listed
Scroll down for more detailed product information

Project Support

This product does not include power supply. Click here for our Power Selection Guide.
View AllClose

/Product Specs

Dimensions T: Any size up to 24" L x 1.17" W x 0.17" H

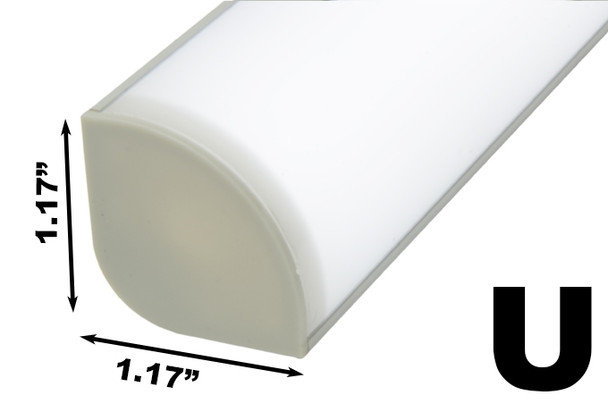

U: Any size up to 24" L x 1.17" W x 1.17" H
Input Voltage 24VDC (Standard)
Wire Lead 8ft 20-2 Wire w/ Connector
for more information click here:
Power Supply Selection Guide
Driver Requires Remote Driver. Dimmable, Non-Dimmable, and Custom Configurations Available
Power up to 12 Watts (6 Watts/foot)
Light Output up to 800 lumens (400 lumens/foot)
determined at 6500K with a frosted lens
Color Temperatures 2200K
2700K
3000K
4500K
6500K
custom color temperatures available upon request
Lifetime Rated for up to 50,000 hours of useful life
Warranty 5-Year Limited Warranty
Safety UL-Listed
Class-2 Listed for Damp Location
> <img src:
/content/v/vspfiles/images/UL Mark Final.jpg" />
Any Size up to 24"
12 Watts
800 Lumens

View AllClose

/Applications

Slim-Low Profile Surface Mounted Linear LED Fixture


  • LED Cabinet Lighting
  • LED Under Cabinet Lighting
  • LED Over Cabinet Lighting
  • LED In Cabinet Strip Lighting
  • LED Under Cabinet Linear Lighting
  • LED Over Cabinet Linear Strip Lighting
  • LED Shelf Lighting
  • LED Shelving Lighting
  • LED Linear under Shelf Strip Lighting
  • LED Linear Over Shelf Strip Lighting
  • Professional Linear LED Strip Lighting
  • Class-2 Linear LED Strip Lighting
  • Hospitality Linear LED Strip Lighting
  • Restaurant Linear LED Lighting
  • Restaurant Under Bar Linear Task Lighting
  • Restaurant Server Station Linear Task Lighting
  • Restaurant Kitchen Linear Task Lighting
  • LED Linear Hotel Lighting
  • Residential Cove Lighting
  • Linear Cove Lighting
  • Linear Commercial Strip Cove Lighting
  • Good Color Rendering Linear LED Cove Lighting
  • LED Strip Lighting for Bars
  • LED Linear Lighting for Hotel Cove Lighting
  • Linear LED Strip Lighting for Office Task Lighting
