/ Description

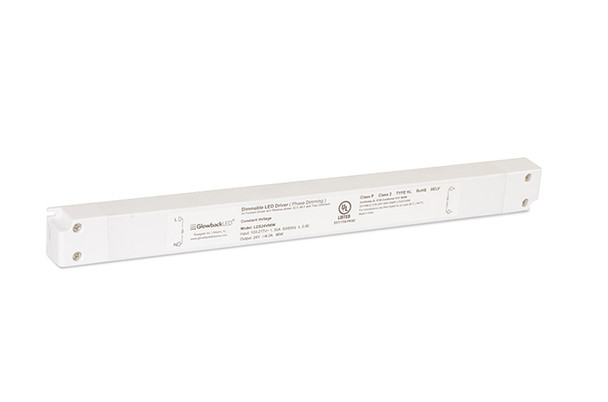

Manufactured exclusively for GlowbackLED, Our new LDS24V96W is a Slim Linear 24V 96W Dimmable LED Power Supply suitable for a wide range of LED strip and linear lighting products. Our LDS24V96W can be used with any phase control dimmers (Forward Phase (Triac/MLV) and Reverse Phase (ELV). Unlike our older dimmable LED power supplies our LDS24V96W outputs consistent, flicker-free lighting which can be smoothly dimmed down to 1%. This Dimmable LED Driver features an integrated wiring compartment, allowing one to make clean connections inside of the power-supply with no need for external junction boxes. This slim, linear design makes our LDS24V96W an excellent solution for powering our LED strips inside of our Aluminum Profile P7, which has a dedicated slot for housing an LED power supply. The slim linear form factor also makes it a more compact solution for applications with limited space.View Spec Sheet Here!
Features
-
Compact, Slim, and Linear Plastic Housing
-
Universal Dimming (Works with any forward or reverse phase dimmer), No Additional Wires Needed!
-
Flicker-Free! Smooth Light Output with No Visible Flicker
-
Suitable for Dry & Damp Locations
-
Comes with Screw-In wire terminals for clean Installation!
-
Universal Voltage Input Accepts 100-277VAC
-
Guaranteed by our 5-Year Warranty
Quick Specs
|
Dimensions |
12.9" x 1.1" x 0.88" |
|
Input Voltage |
100-277VAC |
|
Output Voltage |
24VDC |
|
Output Power |
96W |
|
Power Draw |
4A @ 120VAC |
|
Wiring |
Screw in Terminals |
|
Dimming |
Universal Phase Dimmable (TRIAC/MLV/ELV) |
|
Environment |
Dry/Damp Location |
|
Listings |
UL-Listed, Class-2, RoHs |
Power Supply Operation
LED Power Supplies convert the source or line voltage of your space to either 12 or 24V DC needed to operate your low-voltage LED strips, LED Bars, or LED Panels. Power Supplies, also known as "LED Drivers" have a rated input voltage and output wattage. We reccomend limiting your load (the sum of the wattage of all the lighting connected) to 80% of the output wattage of the Power Supply. All residences in the US have 110/120VAC line voltage circuits for lighting, but certain commercial spaces have 277VAC lighting circuits. Verify that your Power Supply is rated for 277VAC input voltage if your space requires a 277VAC compatible Power Supply. TRIPLE CHECK YOUR CONNECTIONS before powering up a power-supply, inadertently feeding high voltage to a low-voltage LED strip will cause them to fail. Certian power supplies use the European standard for wire coloring: Brown is Line/"Hot"(Black in US), Blue is Neutral (White in US), and Green/Yellow is Ground (Green in US).
Best Used with the Following GlowbackLED Products
White 2200K - 6500K LED Strips
RGB Color Changing LED Strips
RGBW Color Changing and True White LED Strips
Tunable White LED Strips
O M N I Proffesional LED Controllers
Connectors
Cables, Wire, Cable Management, Junction Boxes
/Product Specs
Specifications
Make sure to review product specs before purchasing LED strip. Contact-Us for assistance with product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com
| Input Voltage | 100-277VAC |
| Output Voltage | 24VDC |
| Power Output | 96 Watts |
| Output Current | 4 A |
| Input Current at 120VAC |
1.3 A |
| Wiring | Input: 12" | 18-3 | 100-277VAC Output: 12" | 14-2 | 24VDC |
| Dimming | Universal Phase Dimmable (TRIAC/MLV/ELV) |
| IP-Rating | Suitable for Dry/Damp Locations |
| Dimensions | 12.9" x 1.1" x 0.88" |
| Listings/Safety | UL-Listed RoHS FC |
| Warranty | 5-Year Limited Warranty Lifetime Rated>43,000 Hours |
Output Voltage: |
24VDC
|
Wattage: |
90 - 100 Watts
|
Power Supply Type: |
Screw in Wire Terminals
|
IP-Rating: |
Dry and Damp Location
|
Class Rating: |
Class-2
|
Dimming: |
Universal Phase (TRIAC) Dimmable
|
Spec Sheet: |
