/ Description

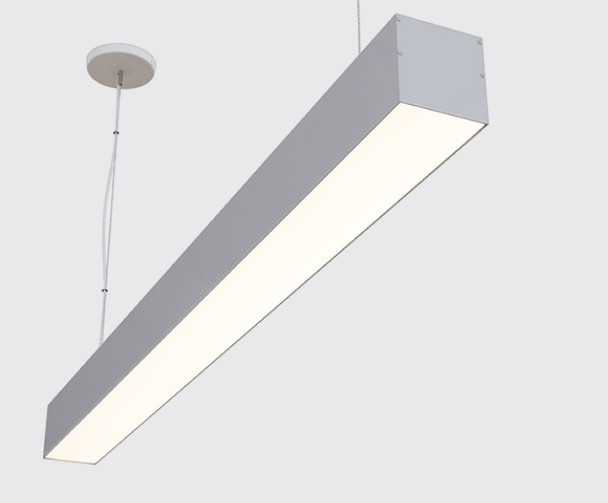

Use our 4ft architectural, specification grade LVLB33 pendant linear light fixture for any residential or commercial lighting application. It features a 3" wide light aperture and can be suspended from any ceiling type. It can be hung as one individual unit, or linked together for seamless, continuous runs of lighting. It comes standard with 0-10V dimming capabilities and is available in 687 or 1,243 lumens/ft configurations, making it suitable for even the most robust general lighting applications. Use in retail, commercial, hotels, hospitality, and residential linear light applications. View Spec Sheet Here!
Features
-
Build: Anodized high-quality aluminum construction.
-
Customization: Can be customized to meet almost any desired look or design (MOQ may apply).
-
Continuous Runs: Can be installed as single unit, or combined with multiple fixtures to create endless runs of linear lighting.
-
Dimming: Standard 0-10V Dimmable (Requires extra wires for dimming). Phase or TRIAC Dimming, does not require extra wires (standard/remodel dimming)
-
Lifetime: 70,000+ Hours
-
Warranty: Guaranteed by our 5-Year Warranty
-
American Made: Designed, built, and shipped out of our Miami, FL facility.
-
Quick Turnaround! Typically ships out in 7-10 days.
-
Emergency Lighting EM Back-Up available upon request
-
UL Listed : Can be specified on any commercial project!
Quick Specs
Length |
4ft (46" actual) |
Width |
3 Inch (Aperture of light) |
Height |
3 Inch |
Input Voltage |
120-277VAC |
Lumen Output |
SO: 2,455 | HO: 3,509 Lumens |
Power |
SO: 36 Watts | HO: 48 Watts |
Color Rendering |
90+, 95+ (Available) |
Mounting |
Suspended (Pendant) |
Fixture Type |
Direct Linear Downlight |
|
|
Sizes
Our LVLBP33 is available in standard lengths of 2ft, 4ft, 6ft, and 8ft, but can be made to custom sizes upon request. Multiple Fixtures can be connected to create un-interrupted, seamless, continuous runs of light. They can also be configured to make rectangles, squares, octagons, and more! Request a Quote for your custom size or shape linear lighting project.
Finishes
Our LVLBP33 is available in an attractive Satin Aluminum, Matte Black, and Matte White Finish. Custom Finishes are available upon request and may be subject to longer lead times and minimum order amounts.
Light Color
Our 4ft LVLBP33
light fixture comes with a standard color rendering index value (CRI) over 90, CRI>95 is available upon request. It is conveniently available in five standard color temperatures:
Mounting Options
Our 4ft LVLBP33 light fixture can be suspended from any ceiling type using the provided mounting kits, suitable to your application [Make Selection before Adding to Cart]. Our suspended light fixtures come with 8ft of aircraft cable, which can be adjusted to any height using the adjustable cable-grippers. Contact-Us for custom mounting configurations or longer suspension cables. View our mounting type selection guide here.
/Product Specs
Specifications
Make sure to review product specs before purchasing Controller and Receivers. Contact-Us for assistance with more product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com
Model # | LVLBP33-46 |
Manufacturer | GlowbackLEDâ„¢ |
Dimensions | 46" long x 3" wide x 3" high |
Lamp Source | LED |
Input Voltage | 120VAC -277VAC |
Power Consumption | SO: 36 Watts | HO: 48 Watts |
Efficiency | SO:70 lumens/Watt | SO: 74 lumens/Watt |
Lumen Output | SO: 2,455 Lumens (641 Lumens/ft) | HO: 3,509 Lumens (916 Lumens/ft) |
Power Cord | 8ft | 18-5 | 120-277VAC Input Hot, Neutral, Ground, Dim+, Dim- |
Power System | Integral LED Driver |
Light Distribution | Direct Light Distribution |
Color Rendering | CRI > 90 | CRI> 95 Available |
Color Temperature |
2700K (Incandescent White) 3000K (Warm White) 3500K (Modern Warm White) 4000K (Natural White) 5000K (Bright White) |
Mount Type | Suspension Mounting |
Dimming |
Non-Dimmable: Switch on or off 0-10V: Dim to 1% |
Warranty | 5-Year Limited Warranty |
Lifetime | 70,000 hours. |
Mount Type: |
Pendant (Suspended) Mount
|
Input Voltage: |
120-277VAC
|
Available Finishes: |
Satin Aluminum
|
Available Finishes: |
Matte Black
|
Available Finishes: |
Matte White
|
Light Aperture Width: |
3 Inch
|
Light Distribution: |
Down Light
|
Dimming: |
0-10V Dimmable
|
Applications: |
General Lighting
|
Fixture Look: |
Clean and Modern Linear
|
Emergency Lighting: |
EM Battery Capable
|
Spec Sheet: |
|
Installation Instruction: |
|
Fixture Length: |
4ft
|
