/ Description

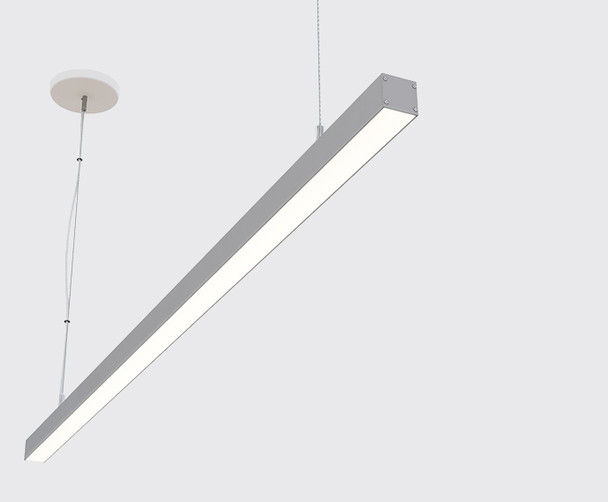

Our 4ft LVLBV2 is a 1.4 Inch wide, sleek and narrow pendant linear downlight that is adaptable with any look or space. Its ultra-slim design makes it a beautiful light source for homes, restaurants, hotels, and retail spaces. Our 4ft LVLBV2 produces 236 lumens/ft and is available in (3) standard color temperatures: 3000K, 4000K, and 6000K, Contact-Us Today for custom color temperature options. Our 4ft LVLBV2 is a low-voltage light fixture, select from pre-configured remote drivers [under product options], or choose a decorative linear canopy (dimmable power-supply included) to power this light fixture. View Spec Sheet Here!
Features
-
Build: Anodized high-quality aluminum construction.
-
Customization: Can be customized to meet almost any desired look or design (MOQ may apply).
-
Continuous Runs: Can be installed as single unit, or combined with multiple fixtures to create endless runs of linear lighting.
-
Dimming: Standard 0-10V Dimmable (Requires extra wires for dimming). Phase or TRIAC Dimming, does not require extra wires (standard/remodel dimming)
-
Lifetime: 70,000+ Hours
-
Warranty: Guaranteed by our 5-Year Warranty
-
American Made: Designed, built, and shipped out of our Miami, FL facility.
-
Quick Turnaround! Typically ships out in 7-10 days.
-
UL Listed : Can be specified on any commercial project!
Quick Specs
|
Length |
46 Inches |
|
Width |
1.4 Inch (Aperture of light) |
|
Height |
1.3 Inch |
|
Input Voltage |
24VDC (Standard) |
|
Lumen Output |
HO: 905 Lumens |
|
Power |
HO: 19 Watts |
|
Color Rendering |
90+, 95+ (Available) |
|
Mounting |
Suspended (Pendant) |
|
Fixture Type |
Direct Linear Downlight |
|
|
|
Sizes
Our LVLBV2 is available in standard lengths of 2ft, 4ft, 6ft, and 8ft, but can be made to custom sizes upon request. Multiple Fixtures can be connected to create un-interrupted, seamless, continuous runs of light. They can also be configured to make rectangles, squares, octagons, and more! Request a Quote for your custom size or shape linear lighting project.
Finishes
Our LVLBV2 is available in an attractive Satin Aluminum Finish. Custom Finishes are available upon request and may be subject to longer lead times and minimum order amounts.
Light Color
Our 4ft LVLBV2
light fixture comes with a standard color rendering index value (CRI) over 90, CRI>95 is available upon request. It is conveniently available in six standard color temperatures:
Mounting Options
Our 4ft LVLBV2 light fixture can be suspended from any ceiling type using the provided mounting kits, suitable to your application [Make Selection before Adding to Cart]. Our suspended light fixtures come with 8ft of aircraft cable, which can be adjusted to any height using the adjustable cable-grippers. Contact-Us for custom mounting configurations or longer suspension cables. View our mounting type selection guide here.
/Product Specs
Specifications
Make sure to review product specs before purchasing Controller and Receivers. Contact-Us for assistance with more product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com
| Model # | LVLBV2-46" |
| Manufacturer | GlowbackLED™ |
| Dimensions | 46 Inch long x 1.4 Inch wide x 1.3 Inch high |
| Lamp Source | LED |
| Power Consumption | HO: 19 Watts |
| Input Voltage | 24VDC |
| Efficiency | HO: 49 Lumens/Watt |
| Lumen Output | HO: 905 Lumens |
| Power Cord | 8ft | 18-5 | 120-277VAC Input Hot, Neutral, Ground, Dim+, Dim- |
| Power System | Integral LED Driver |
| Light Distribution | Direct Light Distribution |
| Color Rendering | CRI > 90 | CRI> 95 Available |
| Color Temperature |
2300K (Amber White) 2700K (Incandescent White) 3000K (Warm White) 3500K (Modern Warm White) 4000K (Natural White) 5000K (Bright White) |
| Mount Type | Suspension Mounting |
| Dimming |
Non-Dimmable: Switch on or off 0-10V Dimmable: Extra Dimming Wires (Best Performance) TRIAC Dimmable: No additional dimming wires (For remodel) Digital Dimming: DMX or DALI available Decorative Linear Canopy: TRIAC Dimmable |
| Warranty | 5-Year Limited Warranty |
| Lifetime | 70,000 hours. |
Mount Type: |
Pendant (Suspended) Mount
|
Input Voltage: |
24VDC (Requires remote power supply)
|
Available Finishes: |
Satin Aluminum
|
Light Aperture Width: |
1 Inch
|
Light Distribution: |
Down Light
|
Dimming: |
0-10V Dimmable
|
Dimming: |
Standard Dimmable (TRIAC/Phase)
|
Applications: |
General Lighting
|
Fixture Look: |
Slim and Sleek Design
|
Emergency Lighting: |
Needs Remote Inverter
|
Spec Sheet: |
|
Installation Instruction: |
|
Fixture Length: |
4ft
|
