/ Description

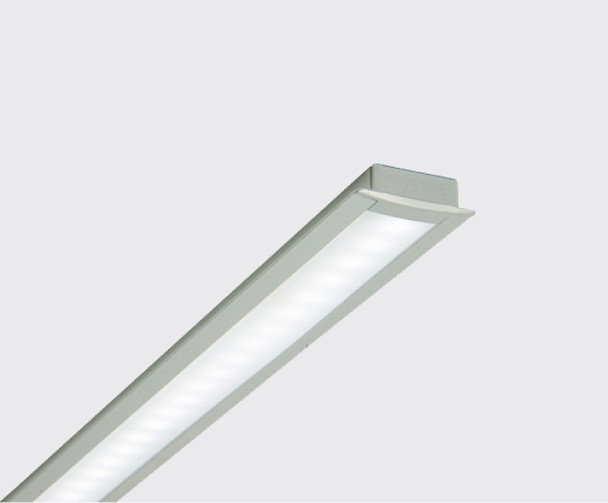

Our 4-6ft LEDBARC is a custom made 1/4 Inch deep trimmed compact recess/flush mount linear LED bar built in any size from 49 to 72 inches in length. It's ultra slim design makes it the perfect linear lighting solution for cabinets, shelving, closets, and more. Our 4-6ft LEDBARC only requires 1/4 of clearance but is low-voltage and requires connection to a remote power supply. Select a dimmable remote power supply for smooth dimming functionality. It is available in
Features
-
Build: Anodized high-quality aluminum construction.
-
Customization: Can be customized to meet almost any desired look or design (MOQ may apply, Contact-Us).
-
Continuous Runs: Can be installed as single unit, or combined with multiple fixtures to create endless runs of linear lighting.
-
Dimming: Dimmable through 0-10V Wires
-
Lifetime: 70,000+ Hours
-
Warranty: Guaranteed by our 5-Year Warranty
-
American Made: Designed, built, and shipped out of our Miami, FL facility.
-
Quick Turnaround! Typically ships out in 7-10 days.
-
UL Listed : Can be specified on any commercial project!
Quick Specs
|
Length |
up to 6ft (49-72 in.) |
|
Width |
0.68 in. (Aperture of light) (0.92 in. w/ flange) |
|
Height |
0.35 in. (0.25 in. Recessed Depth) |
|
Input Voltage |
24VDC (Standard), 12VDC Available |
|
Lumen Output |
up to 1,115 Lumens (197 Lumens/ft) |
|
Power |
up to 14 Watts (2.5 Watts/ft) |
|
Color Rendering |
90+, 95+ (Available) |
|
Mounting |
Trim Recessed: Drywall or Solid Ceiling |
|
Fixture Type |
Low-Voltage Recessed (Ambient Light) |
Sizes
Our LEDBARC light fixture is available in standard lengths of 2ft, 4ft, 6ft, and 8ft, but can be made to custom sizes upon request. Multiple Fixtures can be connected to create un-interrupted, seamless, continuous runs of light. They can also be configured to make rectangles, squares, octagons, and more! Request a Quote for your custom size or shape linear lighting project.
Light Color
Our LEDBARC light fixture comes with a standard color rendering index value (CRI) over 80, CRI>90 is available upon request. It is conveniently available in numerous color temperatures:
Mounting Options
Our LEDBARC light fixture can easily be recessed into any drywall, solid, or drop ceiling. For Recessed Drop Ceiling Linear Lighting Installations simply leave an opening in the grid for the light fixture (the light needs to have T-Grid around the perimeter), and simply rest the light inside of the opening within the grid. Another way to mount LEDBARC is with the use of adhesive or counter sunk screws on a desired cavity.
Power Supply Options
These Linear LED Fixtures require a remote power supply to operate. In many cases, multiple linear LED fixtures can be connected to a single power supply. We have power supplies available in Standard Dimmable (TRIAC/Phase), 0-10V Dimmable (requires wires for dimming), or non-dimmable (on/off) configurations. We also have power supplies pre-configured with connectors for plug and play installations.
/Product Specs
Specifications
Make sure to review product specs before purchasing Controller and Receivers. Contact-Us for assistance with more product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com
| Model # | LEDBARC-72 |
| Manufacturer | GlowbackLED® |
| Dimensions | 49-72 in. long x 0.68 in. (aperture of light), 0.92 in. (w/ flange) wide x 0.25 in. (recessed depth), 0.35 in. high |
| Lamp Source | LED |
| Listings | UL-Listed |
| Power Consumption | up to 14 Watts (2.5 Watts/foot) |
| Input Voltage | 24VDC (12VDC available upon request) |
| Efficiency | 83 lumens/Watt |
| Lumen Output | up to 1,115 lumens (197 lumens/foot) |
| Power Connection | 8ft Cord with 24V Smart Connectors |
| Power System | Remote Power Supply |
| Light Distribution | Direct Light Distribution |
| Color Rendering | CRI > 80 | CRI> 90 Available |
| Color Temperature | |
| Mount Type | Recess Mount to Drywall, Wood, or Solid Surfaces Adhesive: Flush mount using all purpose adhesive Double-Side Tape: ONLY USE VHB Double-Sided Tape. |
| Dimming |
Remote Driver 0-10V: Dim to 1% (New Construction/Recommended) MLV Dimmable: Remodel (No additional wires) Non-Dimmable: Switch On/Off |
| Warranty | 5-Year Limited Warranty |
| Lifetime | 70,000 hours. |
Spec Sheet: |
