up to 2ft | Cut-to-Size 3 Inch "Mud Finish" Recessed Linear

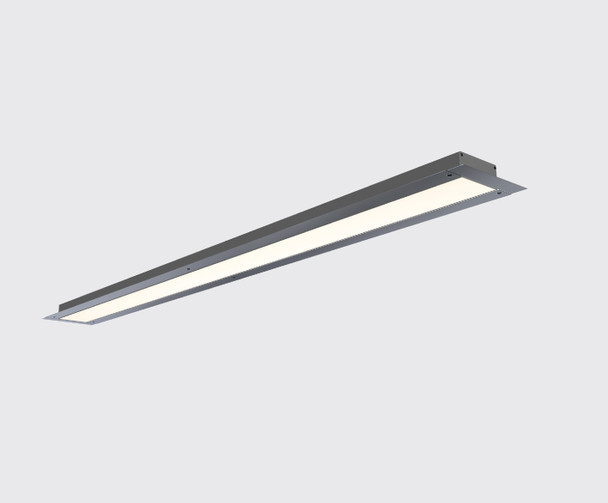

Our up to 2ft LVLBY3T is a custom made 3 Inch wide trim-less ("mud in" flange) flush mount recessed linear LED fixture built any size from 12 up to 24 Inch (Enter Size under [Product Options] before adding to cart). Available in either 350 or 900 lumens per foot light output levels, our LVLBY3T can be used for general lighting in homes, offices, retail spaces, and restaurants. The trim-less, smooth and continuous 3 Inch wide recessed lighting is adaptable with any look or design. Our up to 2ft LVLBY3T only requires 1.3 Inch of clearance but is low-voltage and requires a connection to a remote power supply. Select a dimmable remote power supply for smooth dimming functionality. It is available in 3000K, 4000K, or 6000K color temperatures and can be easily customized to meet your needs. Our up to 2ft LVLBY3T can be recessed in dry-wall or solid ceilings. View Spec Sheet Here!

Sizes

Our 2ft LVLBY3T is available in standard lengths of 2ft, 4ft, 6ft, and 8ft, but can be made to custom sizes upon request. Multiple Fixtures can be connected to create un-interrupted, seamless, continuous runs of light. They can also be configured to make rectangles, squares, octagons, and more! Request a Quote for your custom size or shape linear lighting project.

Light Color

Our 2ft LVLBY3T light fixture comes with a standard color rendering index value (CRI) over 80, CRI>90 is available upon request. It is conveniently available in six standard color temperatures: 2300K, 2700K, 3000K, 3500K, 4000K, and 5000K. Custom color temperatures are available upon request (MOQ may apply).

Mounting Options

Our 2ft LVLBY3T light fixture can easily be recessed into any drywall or solid ceiling type that allows for a 1.3 Inch tall (~ 0.8 Inch Clearance) recessed light fixture. Our LVLBY3T features an integrated plaster-bead which allows you to "mud up" or "plaster finish" up to the aperture of the light. For the best effect, we recommend either installing on new drywall, or creating a "rebate" or notch in previously finished drywall for the cleanest lool. Framing is required on both sides of the opening for the fixture, the fixture is screwed in place through the intregrated plaster bead and into the framing. The framing does not need to run full lenght, but having it span the full length of the fixture or run makes the installation simpler. Refer to our Mounting Instructions for more information.

Power Supply Options

These Linear LED Fixtures require a remote power supply to operate. In many cases, multiple linear LED fixtures can be connected to a single power supply. We have power supplies available in Standard Dimmable (TRIAC/Phase), 0-10V Dimmable (requires wires for dimming), or non-dimmable (on/off) configurations. We also have power supplies pre-configured with connectors for plug and play installations.
