/ Description
A GlowbackLED Exclusive Product, our 24V White CS35240LP LED strip is a high density, low-power (For Maximum Lifetime) strip which allows one to create lasting and headache-free lighting installations right out of the package. Easily cut, peel, and stick the flexible light tape to your desired mounting surface using the durable and permanent 3M® adhesive backing. Achieve well over 50,000 hours of ultra-bright DOTLESS lighting with this highly efficient strip when used with ANY one of our aluminum profiles for LED strips to draw out the heat and protect the strips from damaging elements. Our 24V White CS35240LP LED Strip comes with the UL-stamp of approval and is UL-listed for use in both the United States and Canada (cUL). View Spec Sheet Here!

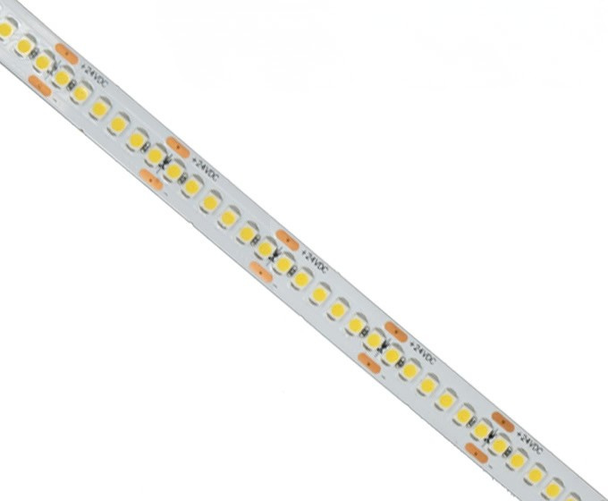

The 24V White CS35240LP LED Strip comes in a 16’5” roll/reel and is 0.39” (10mm) wide. Phosphor Coated 3528 LED chips are mounted on a flexible PCB every 0.15” apart, packing 1,200 LEDs in an ultra high-density—72 LED/ft (240/M)—configuration. The LED strip comes with (1) 6” 18-2 wire lead with bare, tin-coated ends, for fast and reliable wire-to-wire connections. This LED Strip produces an average of 280 lumens/foot and consumes an average of 3.3 Watts/ft (48 Watts total). Effortlessly cut this LED strip every .95” (or every 6 LED chips).
Our 24V White CS35240LP LED Strip is well-stocked in a wide range of color temperatures ranging from 2300K-6000K,(View our color temperature selection guide), offering unrivaled versatility and adaptability for any type of project look and design one is trying to achieve. Select Color Temperature under options, by the “Add-to-Cart” button. Medium-High light output (280 lumens/ft) makes this suitable for cabinet lighting, under-cabinet lighting, task lighting, cove lighting, and a wide range of linear lighting applications.
24V White CS35240LP LED Strip Features
-
Highest Quality in LED Strip Lighting at the Best Prices!
-
NEW Highly Efficient Design
-
Achieve DOTLESS Lighting in channel of ANY depth
-
High Color Rendering! CRI>90
-
UL-Listed (USA AND Canada)
-
Well Stocked, and Ready-to-Ship from Miami, FL
-
Ultra High-Density LED Strip Lighting (72/foot or 240/M) Use to make DOTLESS LED Bars!
-
Fully Dimmable with compatible driver/controller.
-
16'5" roll, easily cuttable every 0.95"
-
Medium Light Output (280 lumens/ft)
-
Consumes 3.3Watts/ft at 24VDC
-
Dependable and Durable. Backed by our 3-Year Warranty
Quick Specs
|
Operating Voltage |
24VDC |
|
Roll Length |
16' 5" |
|
Strip Width |
0.39" [10mm] |
|
Cut Increments |
Every 0.95" |
|
Power Consumption |
3.3 Watts/foot (Average) see full product specs |
|
Lumen Output |
280 Lumens/ft |
|
Color Temperatures |
2300, 2700, 4000K, 5000K |
24VCS35240LP LED Strip Operation
For optimal results and performance, our 24V White CS35240LP LED Strip should be installed inside an aluminum profile for LED Strips. We strongly discourage using quick-connectors with this LED strip, soldering is the only way to get a sure-fire, head-ache free connection! Don’t know how to solder? Let us make you UL-listed LED bars with 5-Year Warranty! We’ll also solder leads onto LED strips to any size! View our LED strip instructions here
Best Used with the Following GlowbackLED Products
Aluminum Profiles, Channels, Extrusions for LED Strip Lighting
Most Popular Aluminum Channels for LED Strip Lighting
Aluminum Channels for Surface Mounted Linear LED Strip Lighting
Aluminum Channels for Recessed Mounted Linear LED Strip Lighting
Aluminum Channels for High Output Ultra Bright Linear LED Strip Lighting
Aluminum Channels for Suspended Linear LED Fixtures
Power Supplies: Dimmable, Nondimmable
Connectors
Cables, Wire, Cable Management, Junction Boxes
280 lumens/foot | 3 Watts/foot
/Product Specs
24VCS35240 LED Strip Specifications
Make sure to review product specs before purchasing LED strip. Contact-Us for assistance with product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com
|
Product Code |
24VCS35240LPXX |
|
Operating Voltage |
24VDC |
|
Roll Length |
16' 5" |
|
Strip Width |
0.39" [10mm] |
|
Cut Increments |
Every 0.95" |
|
Power Consumption (Full Roll) |
48 Watts (3.3 Watts/ft) |
|
Power Consumption (3ft Section) |
9 Watts (3.3 Watts/ft) |
|
Light Output |
280 Lumens/ft |
|
Efficacy |
85 Lumens/Watt |
|
Available Color Temperatures |
2300K (Extra Warm White), 2700K (Incandescent White), 4000K (Natural White), 5000K (Bright White) |
|
Power Feed |
6" 18-2 Wire w/ Tin Coated Ends |
|
IP Rating |
Rated for Indoor Use Only |
|
LED Chip |
3528 |
|
LED Density |
72 LEDs/ft (240/M) |
|
Color Rendering |
CRI>90 |
|
Dimming |
Dimmable with any Dimmable LED Driver |
|
Lifetime |
50,000 Hours (Average) |
|
Warranty |
3-Year Limited Warranty |
BrightnessMeter: |
2
|
Description: |
280 lumens/foot | 3 Watts/foot
|
Spec Sheet: |
|
Voltage: |
24V
|
Light Color: |
White 2200 - 6000K
|
Light Output: |
Medium
|
IP-Rating: |
Dry/Damp
|
Listings: |
UL-Listed
|
Color Rendering: |
90+ CRI
|
Applications: |
Cove Lighting
|
Applications: |
Cabinet Lighting
|
Applications: |
Closet Lighting
|
Special Features: |
Ultra High Density LED Strips
|
Special Features: |
Most Popular
|
Lumen Output: |
200 - 300 Lumens/ft
|
Color Temperature: |
2300K
|
Color Temperature: |
2700K
|
Color Temperature: |
3000K
|
Color Temperature: |
4000K
|
Color Temperature: |
5000K
|
Efficiency: |
80 - 90 Lumens/Watt
|
